Wire Mesh Belt Shot Blasting Machine For Thin Walled Castings And Fragile Iron

Name: Wire Mesh Belt Shot Blasting Machine For Thin Walled Castings And Fragile Iron
Brand: puhua
Price: 1 USD

China Wire Mesh Belt Shot Blasting Machine For Thin Walled Castings And Fragile Iron wholesale

Brand Name : puhua

Model Number : QWG

Certification : ISO CE

Place of Origin : CHINA SHANDONG

MOQ : 1 set

Payment Terms : L/C

Supply Ability : 200 sets/year

Delivery Time : 35days

Packaging Details : container

workpipece : steel plate,small steel structure

Shot blast machine : pass-through

name : shot blasting machine

blasting wheel : 6 pieces

type : Abrasive Blasting Equipment

color : customizable

key words : mesh belt shot blasting machine

Contact Now

Pass-Through Mesh Belt Shot Blasting Machine For Stone and steel cleaning

Wire Mesh Belt Shot Blasting Machine For Thin Walled Castings And Fragile Iron

Wire mesh belt type shot blasting machine is mainly used for automobile, aerospace railway and other machine manufacturing industry, especially suitable for the surface of the thin-walled iron castings or aluminium castings and other small parts.It can be used for mechanical parts shot blasting strength.

Conveyor Belt Used Sandblast Equipment Made In China Feature:
1. Suitable for ship,car,automobile,bridge,etc. industry
2. Cleaning fast
3. PLC control system
4. 3D disign and plasma cutting
5. Chamber liner by olling Mn13 steel,at least 3~5 years

No.	Item	Unit	Data
1	Machine overall dimensions (LWH)	MM	About 7000 x 2870 x 5400
2	Height from ground to mesh belt	MM	1400
3	Feeding entrance size (Width*Height)	MM	1000*500
4	Max. loading weight of single workpiece	KG	65
5	Cleaning speed	m/min	1~2.5 (according to different cleaning requirements can be adjusted by stepless frequency conversion
6	Rust removal standard		Sa2.5
7	Dealing with material and intensity range		Steel,Stainless,Aluminum,etc
8	Surface roughness	μ	20~75(depends on the shot size)
9	Total power	KW	About 53.1
10	Compressed air consumption	m³/min	0.3
11	Compressed air pressure	MPa	0.5-0.7
12	Foundation		No pit, waterproof
13	Noise level	dB	≤95

High temperature resistance
fast conveying speed

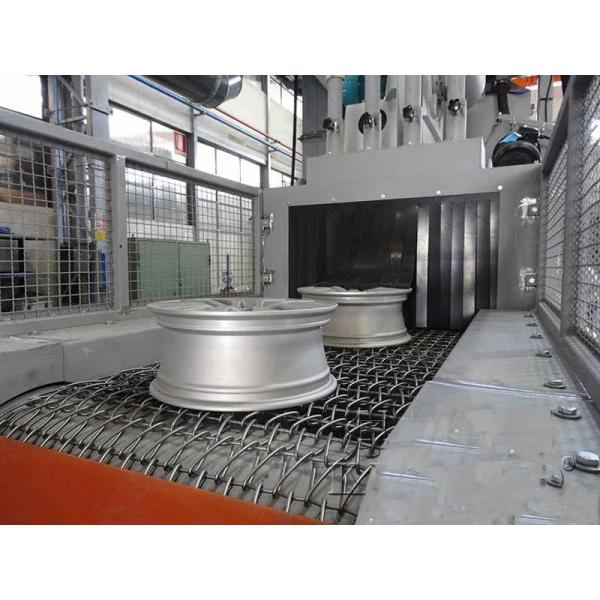

Wire Mesh Conveyor System

Wire Conveyor Width: 600-1200mm
Wire Conveyor Speed: 0.5-4m/min
Wire Conveyor Load: Max unit 150kg
Wire Mesh Diameter:3.5-6.5mm
Max Temperature: <1000°c

Wire Mesh Belt Shot Blasting Machine For Thin Walled Castings And Fragile Iron

High dust removal effect
low pollution

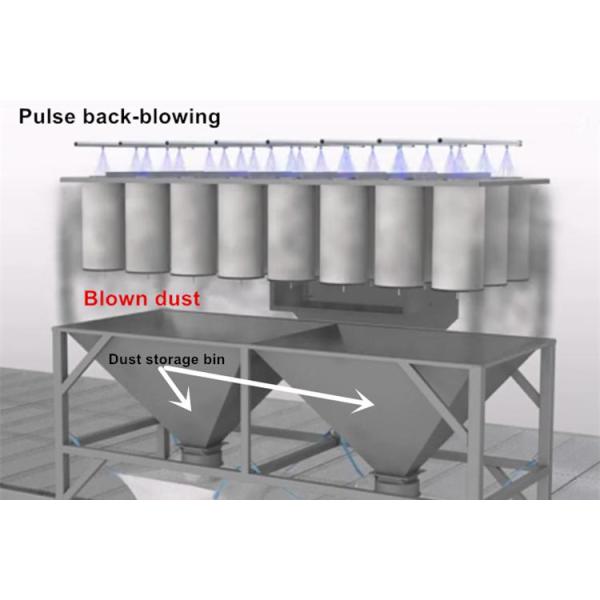

The dust removal system consists of ducting system and filter cartridge dust collector. The emission standard can be lower 80 g/m3. The fan power is 30 kw, ventilation quantity is 26000 m3/h.

Wire Mesh Belt Shot Blasting Machine For Thin Walled Castings And Fragile Iron

Safe ,Good sealing

Blasting Chamber:
Chamber Shell: 10mm fabrication steel
Chamber Liner: 10mm Mn alloy liner with high resistance.

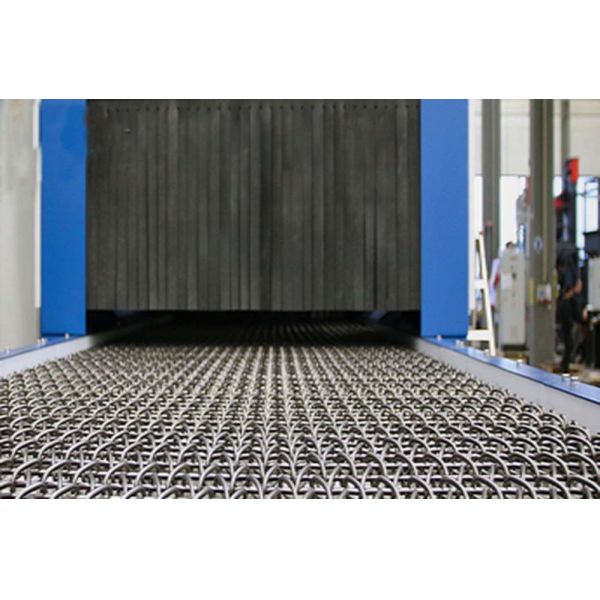

Auxiliary Blasting Chamber:Four layers rubber curtains to prevent steel shots and grits out of blasting chambers.
Curtains:Rubber curtains to prevent steel shots out.

Wire Mesh Belt Shot Blasting Machine For Thin Walled Castings And Fragile Iron
