Bag Type Dust Filtering System Cyclone Dust collector/Dust extractor /Dust filter Deducting Machine
Dust Filtering System Pulse Jet Dust Collector is one system to filter the dust in Fume / gas. It is mainly used for purifying the dusty gas and recycling materials

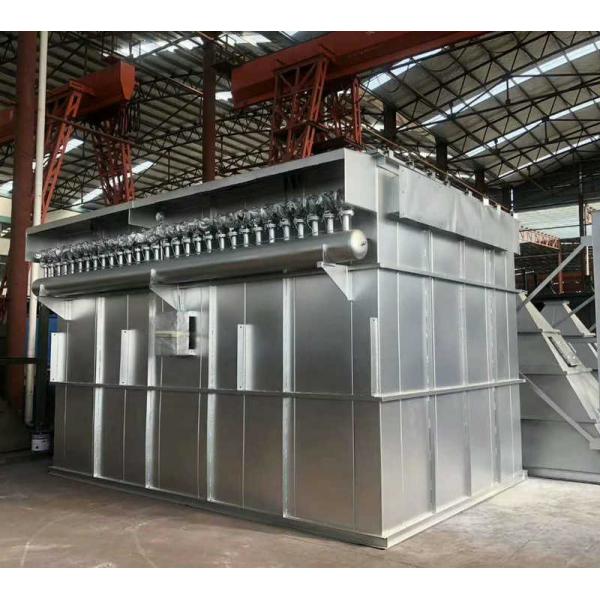

Bag dust collector is a dry industrial filtering device. It is suitable for capturing tiny, dry, non-fibrous dust. The filter bag is made of textile filter cloth or non-woven felt, and the dusty gas can be filtered by the filtering effect of the fiber fabric to achieve the treatment effect of flue gas.
1. High efficiency≥99.5%
2. Low emission concentration ≤20um, but also ≤10um is possible after filtering according to practical situation
3. Low leakage rate
4. Material—carbon steel or stainless steel.
5. Simple Structure, easy maintenance
6. Suitable bags and bag cages fitted according to dust properties. Glass Fiber, needle felt, PTFE, p84., etc
7. The overhaul and bag replacement can be carried out for separate chamber under the condition that system blower and system run normally.
8. The whole set of equipment is controlled by PLC to realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm
9. It is not sensitive to the characteristics of the dust, and it is not affected by dust and resistance.
Paramters of Dust Collector for reference, we are able to design the different dust collector accroding to different requirement.
| PARAMETER | Removing dust air volume | Filtration(m2) | Induced draft fan rate(kw) |
| HR-4 | 3000 | 80 | 5.5 |
| HR-8 | 6000 | 120 | 7.5 |
| HR-12 | 9000 | 180 | 11 |
| HR-16 | 12000 | 240 | 22 |
| HR-24 | 18000 | 360 | 22 |
| HR-32 | 24000 | 480 | 30 |
| HR-36 | 27000 | 540 | 37 |
| HR-40 | 30000 | 600 | 37 |
| HR-48 | 38000 | 720 | 37 |
| HR-56 | 42000 | 840 | 45 |
| HR-64 | 56000 | 860 | 45 |
