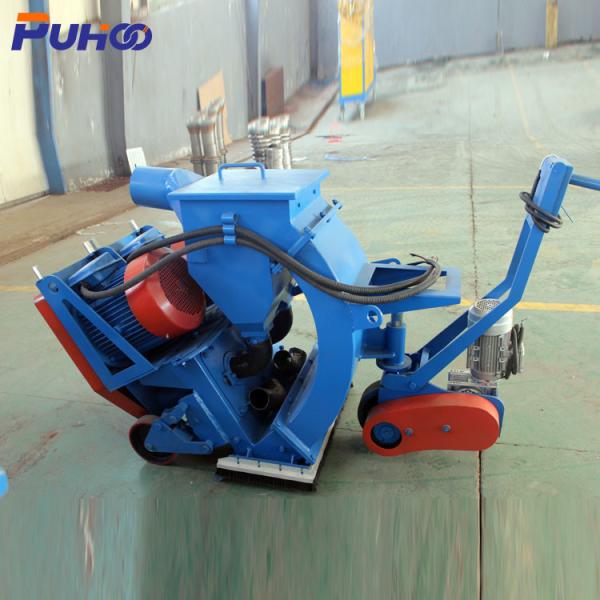

Small Portable Concrete Floor and Road Surface Sand Blasting Machine
Shot blasting machine applied in highway surface cleaning blasts the pills on the road surface at high speed and certain angle by the method of mechinery , make pills impect the surface of the road and make the road surface roughness, reach the effect of removing residuum,at the same time,dust collector will produce negative pressure to make pills and impurities and dust dust recovery after air cleaning, intact pills will automatically be recycled to used, and impurities and dust will drop into the dust collecting box.
Purpose instruction:
1. Industrial floor coating and processing
2. Mark line processing
3. The airport line cleaning
4. Steel plate and steel structure surface clean treatment and rust remove
5. Concrete bridge surface treatment
6. Road surface anti-skid treatment, bleeding treatment
7. The airfield runway surface friction coefficient and texture restoration
8. Bridge nursing
9. The highway project conservation
10.The hull surface maintenance rust removing
11.Storage tanks conservation remove rust and paint
12. Epoxy resin floor clean
| Model | PHLM270 | PHLM550 | PHLM600 | PHLM800 |
| Total Power | 18kw | 29kw | 29kw | 38kw |
| Effective cleaning width | 240mm | 550mm | 600mm | 800mm |
| Productivity on concrete | 120m2/h | 300m2/h | 330m2/h | 450m2/h |
| Blasting wheel quantity | One | Two | Two | Two |
| Traveling speed | 0.5 - 23 m/min | 0.5 - 25 m/min | 0.5 - 25 m/min | 0.5 - 20 m/min |
| Dust collecting type | Blowback cartridge filters | Blowback cartridge filters | Blowback cartridge filters | Blowback cartridge filters |
| Travel type | Horizontal, self propelled | Horizontal, self propelled | Horizontal, self propelled | Horizontal, self propelled |
| Overall dimension (mm) | 1600×432×1016 | 2050×720×1460 | 2050×720×1460 | 2150×980×1450 |
| Weight | 335kg | 595kg | 630kg | 685kg |
The concrete shot blasting machine application
1. Concrete bridge surface treatment
- Road surface shot blasting machine prepares concrete for recoating or application of overlays
- Road surface shot blasting machine removes marking, dirt and old coatings
- Road surface shot blasting machine prepares parking lots and garage decks Road shot blasting machine
- Road surface shot blasting machine cleans factory and warehouse floors
- Road surface shot blasting machine ideal for airport runways
- Road surface shot blasting machine used on bridge decks and highways
- Road surface shot blasting machine stencil patterns for decorative concrete applications
2. Steel bridge surface cleaning, anticorrosive coating pretreatment
- Road shot blasting machine for marine industry: removes paint, rust and marine growth
- Road shot blasting machine cleans ship and aircraft carrier decks
- Road shot blasting machine removes nonskid coatings
- Road shot blasting machine cleans offshore platforms
- Road shot blasting machine prepares petroleum and water storage tank surfaces
- Road shot blasting machine removes rust and paint
3. Blasting equipment cleaning the tunnel concrete pavement
4. Asphalt road surface sliding treatment - Road shot blasting machine removes tire rubber
- Road shot blasting machine removes residue
- Road shot blasting machine specializes in removing surface contamination
- Road shot blasting machine improves skid resistance
- Road shot blasting machine improves micro and macro textures
