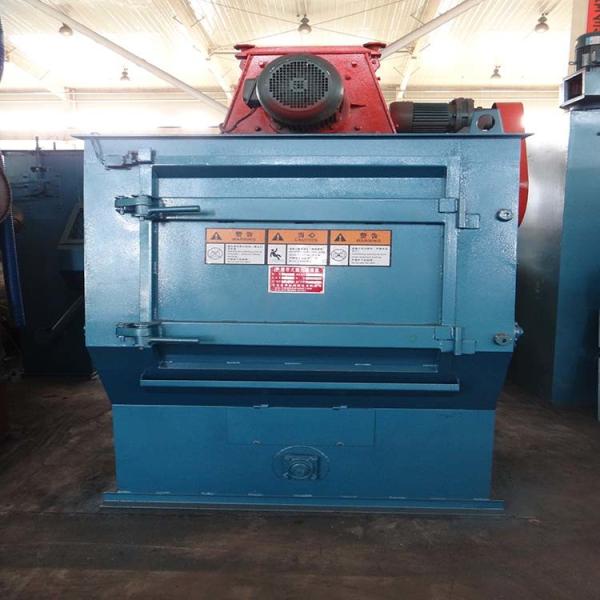

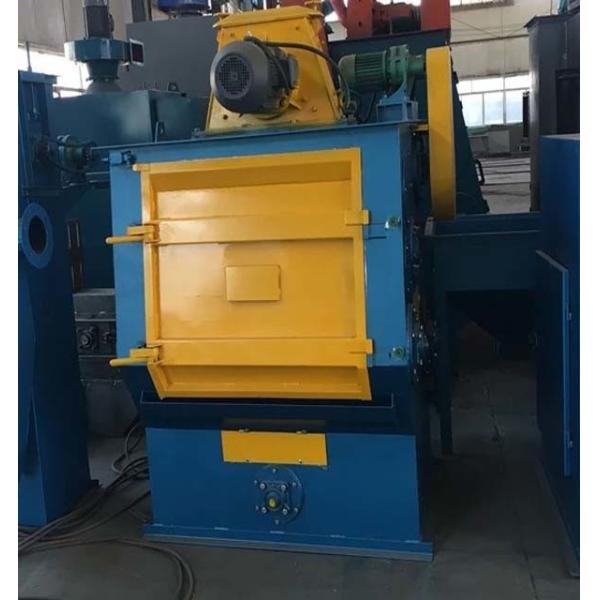

Q32 Series Tumble Belt Shot Blasting Machine
This series is used for surface cleaning,rust removing,product intensifying for all kinds of medium and small casting,forging and machinings.It is suitable for different process scale,can work single or medium and small sizes workpieces.
Q32 Series tumble belt shot blasting machine has advantages of advanced design,reasonable structure,low energy consumption and high efficiency.
Shot blasting machine is a cleaning effect , compact structure, low noise, complete and good cleaning equipment, has the following characteristics:
1. The machine uses cantilever centrifugal blast wheel, has a long life, simple structure and other characteristics.
2. By full curtain winnowing abrasive mixture separator, with good separation effects and higher productivity, has a positive effect to improve the life of the blasting blade.
3. Use wear-resistant rubber track, decreasing workpiece collision damage phenomenon and then reduce the noise of the machine.
4. Use pulse dust collector, dust can be collected in the dust hopper or exclude to outdoors, improve the labor environment.
Tumblast shot blasting machine specification:
| Item | Unit | Q326 | Q3210 |
| Productivity | kg/h | 600-1200 | 2500-3500 |
| Feeding amount | Kg | 200 | 800 |
| Maximum weight of single piece | Kg | 15 | 30 |
| End plate diameter | mm | 650 | 1000 |
| Effective volume | m3 | 0.33 | 1.05 |
| Abrasive flow rate | Kg/min | 200 | 250 |
| Dust removal air volume | m3/h | 2500 | 4000 |
| Power consumption | kw | 13.6 | 25.6 |
| Outside dimension | mm | 3200*1650*3800 | 4290*1950*4500 |

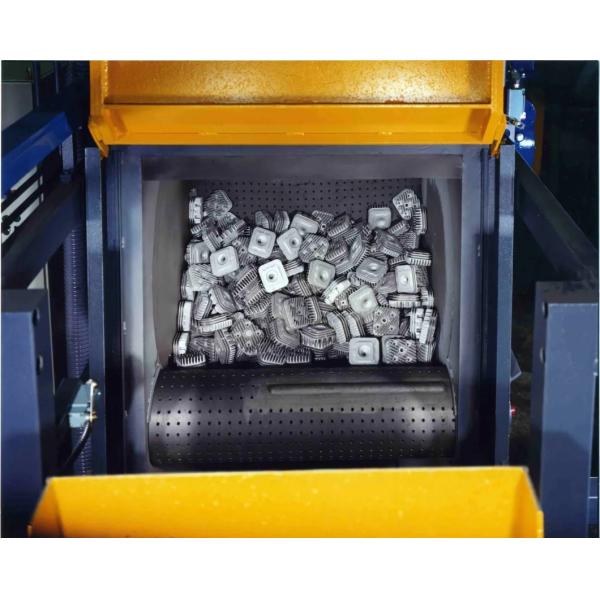

Shot blast picture:
Centifications:
Company Profile:
Service:
1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet, etc Customer need arrange 3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time: 12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents: including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.
Customer photos:
Product Packaging:
Why us?
1.Owned factory, better quality control
2.Rich experienced in manufacturing and exporting
3.Competitve price and reliable oversea after-sale network
Notice
According to your requirements, the most suitable machines will be designed for your work piece, please indicate the following details.
A. What kind of work piece will you clean?
B. The work piece diameter(length, width, height) and weight of maximum work piece.
C. How many work pieces you want to clean per day/month?
Based on above detail information, the detailed technical proposals will be sent to you for reference.
